Stainless Steel Screen Gaskets

Share to:
    Unit Price: USD 4 / Kilogram
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 100 Kilogram
    Delivery Time: 5 Days

Basic Info

Model No.: filter263

Material: Metal

Layers: Single

Type: Filter Elements

Hole Shape: Round

Structure: Single Network

FINISHED: Crimped And Oil Degreased

Features: Corrosion And Rust Resistance

Additional Info

Packaging: 25kgs/carton

Productivity: 2000kgs/day

Brand: hxmesh

Transportation: Ocean,Air

Place of Origin: China

Supply Ability: 200 cartons/day

Certificate: ISO9001

Port: Tianjin,Shanghai

Product Description

Stainless Steel Screen Gaskets

Screen gasket consists two parts, one is the elastomer gasket external part, and in most cases its section is a standard Tri-Clamp. The gasket part is connected with a stainless steel screen or perforated stainless steel plate as inner part. The material of sealing gasket can be Viton, Buna, EPDM, PTFE, Silicone, NBR and so on, and the material of the screen can be stainless steel wire, copper wire, low carbon steel wire and so on. Our company's screen gaskets are anti-aging and pressure resistant, and they are mainly used in food and beverage industries as well as pharmaceutical industries.

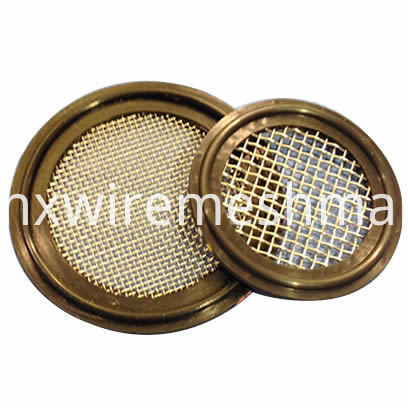

two-screen-gasketsblack-screen-gasket


Specifications:

  • Gasket material: Buna, FKM, Fluoro elastomer (Viton), EPDM, PTFE (Teflon), Silicon, NBR, HNBR, BR, CR, Hy-Tuf Steel.
  • Gasket size: 1/2" - 12" or according to customer request.
  • Gasket shape: round, square, rectangle, oval, loop, sock, kidney-shaped, irregular.
  • Screen material:
    • Metallic: 304,316,316L stainless steel wire, low carbon steel wire, copper wire, nickel-plated copper wire, aluminum wire, nickel based alloy wire, perforated stainless steel piece.
    • Non-metallic: Polypropylene, Teflon.
  • Screen mesh count: 10, 20, 40, 60, 80, 100, 120, 150, 200, 300, 400 mesh.
  • Wire diameter: 0.025mm - 2.5mm.
  • Temperature range: -50°C - 287°C.
  • Standard: U.S. Pharmacopoeia Class VI, Cytotoxicity Criteria, USDA Sanitary Standards, Current Good Manufacturing Practices, EP 3.1.9, FDA, ISO9001, NSF, LFGB, DIN, ASTM, ACS.
  • Durometer Hardness Shore A: 30A - 70A, adjustable.
  • Surface treatment:
    • Talc: physical sunscreen agent.
    • Silicone grease: high temperature resistant, anti-aging, ozone resistant, hydrophobicity, water proof, moisture proof, vacuum sealing performance, prevent dust and pollutants into sealing parts.
    • Graphite coating: wear resistant.
    • Ground surface.
  • Color: black, white, semi-transparent, transparent.
  • Screen weave type: plain weave, twill weave, dutch weave, dutch twill weave (provide for maximum strength and minimum pressure drop).
  • Layer: single or multilayer.
  • Packing: inner poly bag and outside carton box or as request.

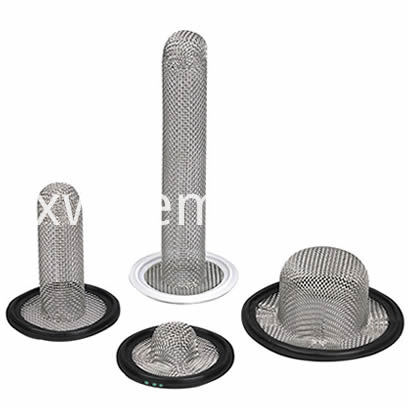

sock-screen-gasket

Advantages of some gasket materials:

  • Buna: petroleum based fluids resistant.
  • FKM: corrosion resistant.
  • Viton: good chemical stability.
  • EPDM: anti-aging.
  • PTFE: high electrical insulation.
  • Silicone: high temperature resistance.
  • NBR: oil resistant.
  • CR: abrasion resistant.

perforated-candle-filters

Screen filter features:

  • Abrasion resistant.
  • Decrease pump wear and energy consumption.
  • Corrosion resistant.
  • Acid and alkali resistant.
  • Anti-ozone.
  • Petroleum based fluids resistant.
  • High reliability and durability.
  • Low and high temperature resistant.
  • Good electrical property.
  • Environmental compatibility.
  • Chemical compatibility.
  • Stress resistant.
  • Shock absorption.
  • Good sealing.
  • Anti-aging.

Applications:

  • Our screen gaskets have various applications in our daily life. Protecting sensitive pieces of process equipment, such as spray balls, spray nozzles, filling needles, pumps, one-way valves and accessories. By separating the volume of solids out of the process stream.
  • They can also be used for pre-filtration in thin-film filters, coalescence of water vapor from process lines, remove the large particulate before fill and finish process as well as disinfection process, and chromatography purification.
The specific usages of some materials
Materials Usages
Buna Widely used in the food and beverage industries, and the economical choice for seals in engines and equipment where petroleum based oils, lubricants, and fuels are present.
Never use Buna gaskets for ozone, ketones, esters and aldehydes.
PTFE Widely used in pharmaceutical, food and chemical applications.
Silicone Widely used in pharmaceutical, high- purity water, injectable, food and beverage applications.
Orifice plate Sanitary orifice plates are widely used in a sanitary process line to constrict or flow downstream, or to maintain a constant pressure upstream.



Looking for ideal Filter Mesh Slices Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Candle Filter Screen are quality guaranteed. We are China Origin Factory of Wire Mesh Filter Element. If you have any question, please feel free to contact us.
