Woven Mesh Test Sieves

Share to:
    Payment Type: L/C,T/T,Paypal,Western Union
    Incoterm: FOB,CFR,CIF
    Min. Order: 100 Meter
    Delivery Time: 3 Days

Basic Info

Model No.: filter21

Material: Stainless Steel Wire

Application: Protecting Mesh, Screen, Construction Wire Mesh

Hole Shape: Square

FINISHED: Polished

Edge: Closed Or Cut

Additional Info

Packaging: wooden case

Productivity: 10000m/day

Brand: hxmesh

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 500rolls/day

Certificate: ISO9001

Port: Tian jin,Shanghai

Product Description

Woven mesh test sieves are made of stainless steel, brass and bronze woven mesh and the stainless steel or brass frames. Commonly sieves are round.

Woven mesh test sieves are supplied in complete range of aperture sizes, diameter sizes, depths, choice of materials, certified degrees of inspection to meet virtually every requirement.

Test sieves should be used with care, cleaned regularly and stored in a safe dry place. To avoid chemical corrosion, we recommend the stainless steel sieves for most lab test sieves and grading sieving material.

Test sieves can be used in various applications, such as laboratory test sieves, metallurgy, abrasive, construction industries and research lab for precise classification of minute granule materials.

There are some special woven mesh test sieves.

  • Half height sieves
    It can be used in the analysis of smaller quantities of samples. These are available in diameter of 100mm, 200mm or 300mm and 3", 8", 12".
  • Wet washing sieves
    Extremely useful sieves can be used where samples need to be separated with the help of wet washing. They are available in 8" diameter and 4" or 8" deep. The frames of the sieves are brass or stainless steel.
  • Extra depth sieves
    Extra depth sieves are commonly used in the construction and cement industries. The sieves are available in a diameter size of 450mm and the depth is 300mm.
woven-mesh-test-sieve-half-heightwoven-mesh-test-sieves-brass



Specifications

  • Sieve mesh materials: stainless steel, brass and phosphor bronze.
  • Frame material: stainless steel and brass, larger diameter sieves also available in galvanized steel.
  • Aperture size: from 125mm down to 20μm.
  • Wire diameter: 0.02mm to 6.3mm.
  • Outer sieves diameter size: 38mm, 100mm, 150mm, 200mm, 250mm, 300mm, 315mm, 400mm, 450mm, 3", 8", 10", 12", 18".
  • Depth: 1", 1-1/2", 1-5/8", 1.625", 2", 3", 3-1/2", 3.25", 4", 4.25", 6", 8".
  • Depth type: full height and half height.
  • Certified degree: ASTM and ISO Standards.

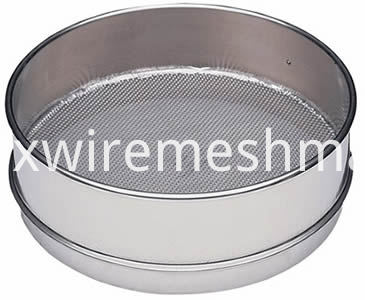

woven-mesh-test-sieves-stainless-steel



Features

  • Corrosive resistance. Stainless steel has outstanding corrosive resistance performance, so the stainless steel test sieves can be used in the chemical and other corrosive environments or can analysis the corrosive materials.
  • Various apertures for choice. There are wide range of apertures and diameters for choice, which can fit requirements of majority customers.
  • Customizable. We can supply all kinds of standard test sieves; the special sized sieves can be customized.
  • Certified: These are the most widely used test sieves and are manufactured to a National or International Specification.

Applications

  • Woven wire sieves are most widely used for all types of laboratory sampling and particle size analysis. For example the pharmacy testing.
  • The test sieves is mainly used in metallurgy, abrasive, construction industries.
  • Woven wire sieves can be used as grading sieves, sifting sieves, sand screening and grain sieves.
woven-mesh-test-sieve-soil




Looking for ideal Stainless Steel Test Sieves Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Brass Test Sieve are quality guaranteed. We are China Origin Factory of Bronze Test Sieve. If you have any question, please feel free to contact us.
